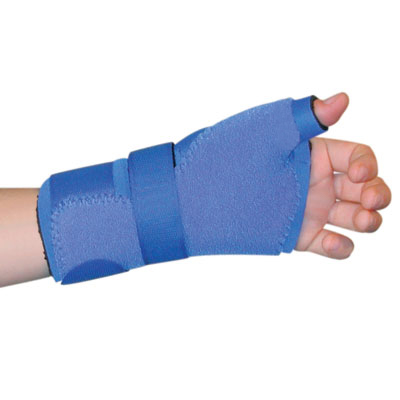

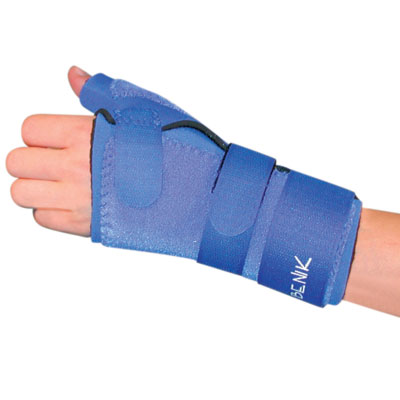

W-323 Thermoplastic Wrist & Thumb Support
Neoprene splint features a 1/16" thermoplastic panel that is heated and molds to the wrist to help control wrist flexion, hyperextension and ulnar deviation. The neoprene and thermoplastic panel extend over the CMC and MCP joints and up to the IP Joint of the thumb. Features Velcro® fasteners at the thumb, wrist and forearm for easy application and removal.
Wrist Flexion - Benik's thermoplastic 300 Series wrist supports can be molded to provide wrist flexion of 30 degrees from full extension. A greater degree of wrist flexion can be achieved with a custom designed support. See Wrist Support Options for more information.
View, submit or download our Hand Splint Order Form(PDF).
| STOCK SIZES | ||||
|---|---|---|---|---|
| W-323 | ||||
| Stock Size | Splint Length (MCPs to Proximal End) | Circumference at Thumb IP | Circumference at MCPs | Typical Age |
| Ped XXS | 3 3⁄4" | 1 3⁄8" | 4" - 4 3⁄8" | <1 |
| Ped XS | 4 1⁄4" | 1 1⁄2" | 4 3⁄8" - 4 3⁄4" | 1-2 |
| Ped S | 5 1⁄4" | 1 3⁄4" | 4 5⁄8" - 5 1⁄4" | 3-4 |
| Ped M | 6" | 2" | 5 1⁄4" - 5⅞" | 4-5 |
| Ped L | 6" | 2 1⁄4" | 5 3⁄4" - 6 3⁄8" | 6-9 |
| Ped XL | 7" | 2 3⁄8" | 6 1⁄4" - 6 3⁄4" | 10+ |
| Custom lengths exceeding 7" convert to W-321 item no. | ||||
| Measuring Guide | ||||
